| Brand Name: | AnKuai |
| Model Number: | R7C |
| MOQ: | 1 set |
| Price: | $260~$420pcs |
| Packaging Details: | Carton and wooden case. Wooden case is suggested with extra charge but safer. |
| Payment Terms: | L/C, T/T, Western Union |

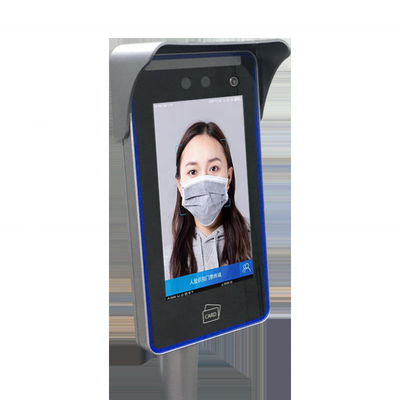

Face access control is a type of biometric access control that uses facial recognition technology to identify and authenticate individuals. It involves capturing an image of a person's face using a camera and then analyzing the unique features of their face to verify their identity. This technology can be used to control access to a range of different facilities or systems, such as building entrances, computer networks, or high-security areas.
Application scenarios

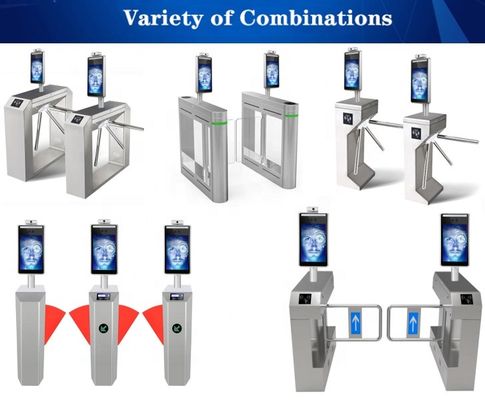

It is suitable for office areas, hotels, passage gates, office buildings, schools, shopping malls, stores, communities, public service and management, etc. where face control is needed.
Product characteristics
1) Adopt RV1109 chip solution, 2-core 1.5GHz CPU, 1.2TFLOPS computing power, powerful hardware platform
2) Wide dynamic low illumination CMOS, image resolution 1920(H)*1080(V);
3) Binocular wide dynamic camera, supporting live body detection function, effectively preventing photos, videos, and attacks;
4) Face recognition performance is as fast as 0.3 seconds to accurately recognize faces, and the recognition accuracy is as high as 99.7%;
5) The farthest recognition distance is 2 meters;
6) Support access control, Wiegand output;
7) Support offline face recognition, and directly enter face information on a stand-alone machine, without background and cloud;
8) Support the expansion of the face list database;
9) Support to read second-generation ID cards and residence permits from Hong Kong, Macao and Taiwan for personal ID comparison;
10) Support 1:N face recognition, 1:1 ID/IC card recognition;
11) Support the secondary development and docking of LAN and cloud protocols;
12) The temperature measurement distance is 0.3m-1m;
13) The accuracy rate of temperature measurement is as high as ±0.3℃.
Specification
|
Basic information |
Installation site | Wall installation, gate installation |
| Working temperature and humidity | -15℃ to 55℃,<90℃RH | |
| Protection level | IP55 | |
| Dimensions | 246*21.5*123mm | |
| Texture | Aluminium alloy | |
| Hardware information | System | Linux |
| CPU | RV1109 2 core 1.5GHz | |
| Storage | Memory 1GB, data storage 8GB | |
| Display screen | 7-inch high-definition IPS LCD screen, resolution 600*1024 | |
| Touching | Selected touching | |
| Camera | 200W live binocular camera | |
| Wide dynamic | Support | |
| Fill light |
Three-colour fill light Infrared fill light |
|
| WIFI | Support (Selected) | |
| Speaker | 1-way speaker | |
| Watchdog | Support hardware watchdog | |
| Recognition performance | Recognition distance | 0.5-2M |
| Recognition time | <300ms | |
| Face library capacity | 1:N,N<=20000 | |
| Accuracy | 99.70% | |
| IC/ID card recognition | Support USB swiping module/serial swiping module (optional) | |
| ID card recognition |
Supporting witness comparison (Support central control, Huashi USB interface universal protocol ID card reader) |
|
| Connector | Power connector | DC12V x 1 |
| USB connector | USB2.0 x 1 | |
| Relay output | Switch output x 1 | |
| RJ45 network cable interface | Ethernet port x 1 | |
| Wiegand output interface | Wiegand output x 1 | |
| Alarm input | Alarm input x 2 | |
| Working environment | Power supply | DC12V 2A |
| Power consumption | ≤8W | |
| Working temperature | -20℃~+60℃ | |
| Working humidity | 20%-90% | |
| Storage temperature | -40~125℃ | |
| Temperature measurement performance | Temperature measurement distance | 0.3-1.0M |
| Temperature measurement error | ±0.3℃ | |
| Working environment | Indoor, semi-outdoor |
